UNITATE MONTAJ MODULE FIBRA OPTICA
Initial content
Descrierea produsului
-3 Rack Units (RU) High
-Mount in Standard 19-Inch Rack
-Optional External Power Supply for Fiber Optic Modules
-Optional Blank Modules

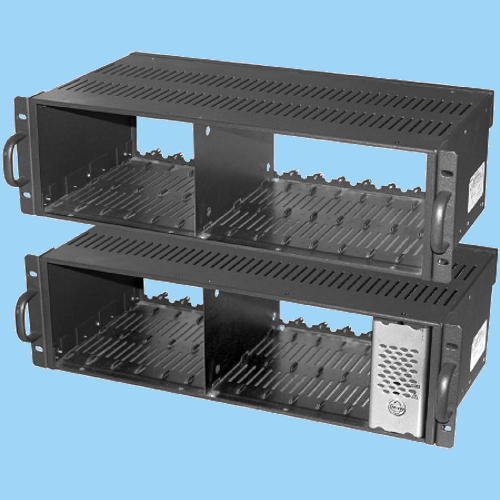

-The RK5000-3U chassis has 14 empty slots. It does not include an internal power supply. A fully populated RK5000-3U chassis can be powered with the optional EPS5000-120 external power supply. The chassis is designed to mount into an EIA-standard, 19-inch rack.
-Optional single-width blank modules (RK5001B-3U) and double-width blank modules (RK5002B-3U) can be inserted into empty module slots.
-Provide power to one fully populated RK5000-3U
-Provide power to two fully populated RK5000-3U-The relay output connector on the back of the EPS5000-120 is tied to the alarm LED.
-The alarm LED turns red when there is an alarm condition, such as the loss of the optical signal or the video signal.
-The relay will close or open, depending on whether it is set to normally closed (N.C.) or normally open (N.O.). -The 6-pin power connector allows you to connect an over-molded cable (supplied) from the EPS5000-120 to either the RK5000-3U or the RK5000PS-3U.
-The power fail LED turns red when there is a problem with the power supply that can cause it to fail. If one of the power supplies fails, the blue Pelco badge will turn off.
-RK5000-3U Rack mount chassis for up to 14 fiber optic modules or 14 UTP modules; external power supply required
