UNITATE MONTAJ MODULE FIBRA OPTICA CU SURSA
Initial content
Descrierea produsului
-3 Rack Units (RU) High
-Mount in Standard 19-Inch Rack
-Hot Swappable Internal Power Supply (RK5000PS-3U)
-Optional External Power Supply for Fiber Optic Modules
-Optional Blank Modules

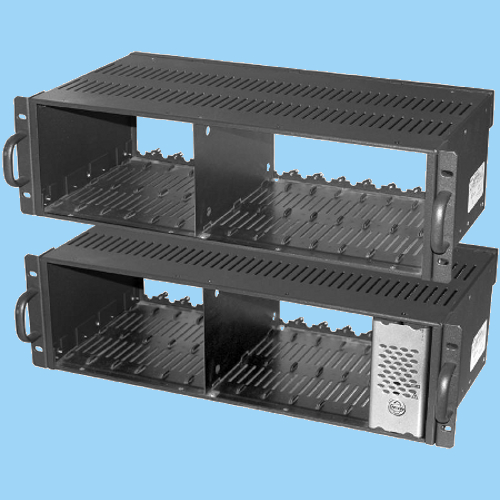

-The RK5000PS-3U chassis has 12 empty slots that can hold singlewidth or double-width fiber optic modules or single-width UTP modules. The modules and the internal power supply are 3 rack units (RU) high. The internal power supply powers all modules and can be replaced easily if it fails. The chassis is designed to mount into an EIA-standard, 19-inch rack
-Optional single-width blank modules (RK5001B-3U) and double-width blank modules (RK5002B-3U) can be inserted into empty module slots
-The alarm LED turns red when there is an alarm condition, such as the loss of the optical signal or the video signal
-The relay will close or open, depending on whether it is set to normally closed (N.C.) or normally open (N.O.). -The 6-pin power connector allows you to connect an over-molded cable (supplied) from the EPS5000-120 to either the RK5000-3U or the RK5000PS-3U
-The power fail LED turns red when there is a problem with the power supply that can cause it to fail. If one of the power supplies fails, the blue Pelco badge will turn off
